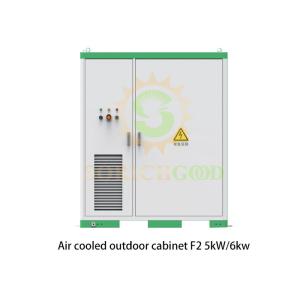

Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments

    Buy cheap Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments from wholesalers

    Buy cheap Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments from wholesalers
    • Buy cheap Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments from wholesalers

    Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments

    Ask Lasest Price
    Brand Name : DS
    Model Number : DS-OLA
    Price : consult prices online
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Outdoor Cabinet F2 5kW 6kW With Lithium Battery Storage Ideal For Harsh Environments

    Outdoor Cabinet F2 5kW/6kW with Lithium Battery Storage Ideal for Harsh Environments


    Product Description

    The OL Air-Cooled Outdoor Cabinet F2 (5kW/6kW) is engineered for demanding outdoor environments, offering reliable and efficient energy storage and management. This cabinet is powered by high-efficiency lithium iron phosphate (LFP) batteries, designed to deliver an impressive cycle life of 8000 cycles, ensuring long-term and stable power supply even in extreme conditions. The intelligent air-cooling system is a standout feature, adapting to varying temperatures to maintain optimal equipment performance and longevity. The cabinet is highly customizable to meet various needs, with optional photovoltaic (PV) DC-DC conversion and rapid STS (Static Transfer Switch) switching, making it versatile for multiple scenarios and ensuring seamless power management.

    Technice Specifications
    Model DZ105215B
    DCSide
    Rated Battery Capacity215kWh
    Rated Battery Voltage819.2V
    Battery Voltage Range768V-921.6V
    Battery TypeLFP
    Cell Capacity131Ah
    Cycle Life8000 cydes (0.5C,5%~95%DOD,70%SOH)
    Standard Charge/Discharge Current0.5C
    Series-Parallel Connection Method2*1P*8S*32
    AC Side
    Rated AC Power105kW
    Maximum Efficiency98.50%
    Rated ACVoltage230/400V
    GridVoltage Range320-460V
    Rated AC Frequency50/60Hz
    Total Harmonic Distortionof Current THDI<3%(Rated Power)
    Power Factor-1 Leading-+1 Lagging
    Total Harmonic Distortion of Voltage THDU<3%(Linear Load)

    System Parameter
    Energy Cyde Efficiency≥88%
    Protection LevelIP54
    Corrosion Protection LevelC3 by defaut,C4/C5 optional
    Isolation MethodNon-isolated (lsolation transformer optional
    Relative Humidity0~95%(No condensation)
    Operating Temperature-30℃~55℃(derating above 45℃)
    CoolingMethodIntelligent Air Cooling
    Altitude<4000m (derating over 2000m)
    BMS CommunicationCAN2.0b
    EMS Communication4G/CAN/RS485
    Dimensions (W*D*H)1850mm*1250mm*2280mm
    Weight (Approx.)3500kg
    Annual DegradationRate<3%
    Warranty5 years
    Photovoktaic DCDC Parameter(Optional)
    Maximum Input Component Power100kW
    MPPT Voltage Range200-850V
    Numberof MPPT Tracks1-2 track
    STS(Optional)
    Rated Power200kW(grid side100kW,load side100kW)
    Switching Time≤20ms

    Application


    The OL Air-Cooled Outdoor Cabinet F2 is ideal for outdoor applications where environmental conditions are harsh and reliability is critical. Its robust design and advanced cooling technology make it particularly suited for remote installations, renewable energy systems, and backup power solutions in challenging environments. The ability to customize the cabinet with additional PV and STS options ensures it can be tailored to specific needs, whether for industrial use, telecommunications, or off-grid power systems. The cabinet's high efficiency and adaptability make it an excellent choice for organizations seeking a reliable and flexible energy management solution.


    Shipping Methods

    Supports global air and sea shipping
