| Brand Name : | LS |
| Model Number : | LSIS |
| Certification : | GB/T36276 IEC62619 IEC60730 UL1973 UL9540A |
| Price : | consult prices online |
| Payment Terms : | T/T |

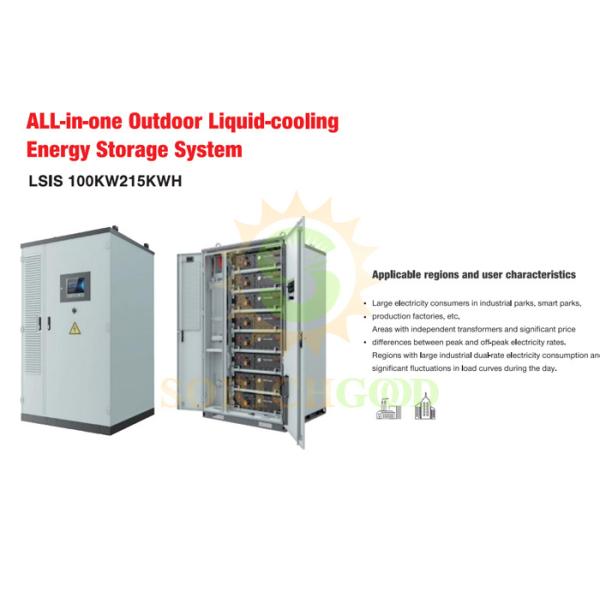

The LSIS 100kW215kWh is a high-capacity energy storage system designed to provide industrial and commercial users with efficient, long-lasting, and secure energy solutions. With a rated energy of 215kWh and rated power of 100kW, it is engineered for on-grid and off-grid applications, offering reliable energy backup and peak shaving capabilities. It features advanced liquid cooling technology and a robust IP55-rated enclosure, making it suitable for outdoor use. The system's modular design allows easy expansion, and it integrates seamlessly with existing infrastructure, supporting up to 10 parallel units.

| Product Type | LSIS 100KW215KWH |
| Rated Energy | 215kWh@0.5C |
| Rated Power | 105kW |
| Rated Output Voltage | 380/400VAC |
| Cell Capacity | 280Ah |
| Cell Type | GSP71173204F,3.2V280Ah |
| Configuration | 1P 240S |
| Maximum Discharge Current | 173A |
| Maximum Charging Current | 173A |
| Frequency | 50/60 |
| Operating Temperature Range | -20~+55℃ |
| Communication Port | LAN,RS485 |
| Cooling Method | Liquid Cooling |
| Protection Level | IP55 |
| Functional Safety | Class B |
| Product Weight | =2900kg |
| Dimensions | W1300*D1300*H2285 mm |
| LifeCycle | 6000 times |

This product is ideal for large electricity consumers, including industrial parks, production facilities, and smart parks. It is also suited for areas with significant differences between peak and off-peak electricity rates, ensuring energy efficiency and cost savings. Its ability to support both grid-connected and off-grid operations makes it a versatile solution for various energy storage needs in microgrids, data centers, and other high-demand environments.

Supports global air and sea shipping.
|
