    3440kWh Peak And Off Peak Electricity Rates Made Easy With Lithium Battery Storage

    3440 kWh Peak and Off-Peak Electricity Rates Made Easy with Lithium Battery Storage

    Product Description

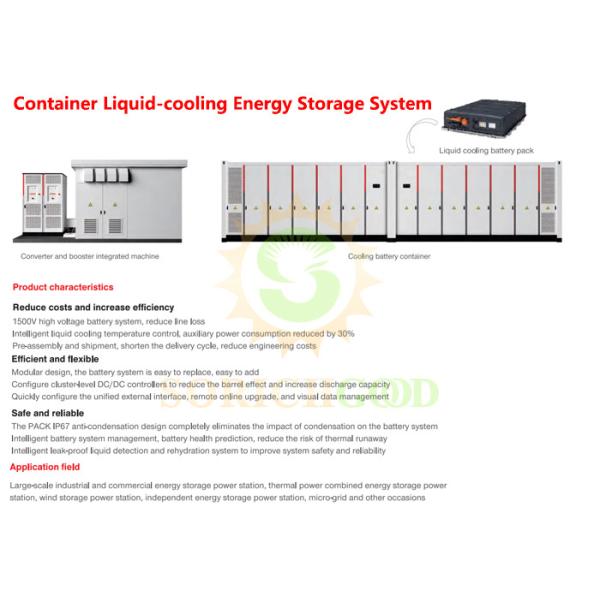

    The product is a high-capacity industrial and commercial energy storage system featuring advanced lithium iron phosphate (LiFePO4) battery cells. It is designed for large-scale energy storage applications, providing high security, long life cycles, and high efficiency. The system utilizes a liquid cooling method for optimal performance and longevity. Its modular design ensures flexibility for site layout and ease of installation, with parallel expansion possible at any time. The system is compatible with both grid-connected and off-grid operations and comes with multiple protection mechanisms, including fire suppression and thermal runaway prevention.


    AC
    Side
    PowerRating3450kVA
    Rated Voltage35kV/10kV (optional)
    Grid Voltage Range35kV/10kV±2*2.5%
    PowerFactor>0.99 (at rated power)
    Reactive Power Adjustable Range-105%~105%
    Rated Grid Frequency50Hz
    Grid Frequency Range45~55Hz
    AC Current Distortion Rate<3%(at rated power)
    DC Component<0.5%
    Isolation ModeTransformer isolation
    DC
    Side
    Battery TypeLithiun iron phosphate 3.2V/280Ah
    System BatteryConfiguration2×384S10P
    Battery Rated Capacity2×3440kWh
    Battery Voltage Range1075.2~1382.4V
    BMS Communication Interface485 Communication/CAN/Ethernet
    BMS Communication ProtocolModbus TCP
    Dimensions of Converterand BoosterIntegrated Machine6058×2438×3000 (W×D×H,mm)
    Dimensions of Liquid-cooling Battery Container6058×2438×2896 (WxD×H,mm)
    Weight of Converter and BoosterIntegrated Machine<16t
    Weight of Liquid-cooling Battery Container<35 t
    Degree of ProtectionIP54
    Battery Charge/Discharge Operating Temperature0℃~55°℃/-20°℃~55℃
    SystemOperating Humidity Range0~95%(Non-condensing)
    ParameterStandard Altitude<2000m(>2000m,derating
    Battery Temperature Control Modeliquid-cooling
    Converter Cooling MethodForced aircooling
    Fire SuppressionNOVEC 1230/FM200
    System Communication InterfaceEthernet/RS485
    ExtemalSystem Communication ProtocolModbus RTU,Modbus TCP,IEC61850,IEC104
    ComplianceGB/T36276-2018,IEC62619,UL1971,UL9540A
    Remarks:Specfications are subject tochange without notice;Special voltage and power requirements can be customized designed

    Application

    This energy storage system is ideal for large-scale industrial parks, smart grids, thermal power combined storage stations, and independent microgrid applications. It is particularly suited for regions with significant price differences between peak and off-peak electricity rates, and for industrial applications where dual-rate electricity consumption fluctuates throughout the day.

    Shipping Methods


    Supports global air and sea shipping.
