15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations

    Buy cheap 15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations from wholesalers

    Buy cheap 15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations from wholesalers
    • Buy cheap 15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations from wholesalers

    15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations

    Ask Lasest Price
    Brand Name : DS
    Model Number : DS-DBA
    Certification : IEC62619/EN61000-6-1/ EN61000-3/RoHS/UN38.3
    Price : consult prices online
    Payment Terms : T/T
    • Product Details
    • Company Profile

    15kWh 13kWh DB All In One Lithium Battery Storage For Permanent Temporary Installations

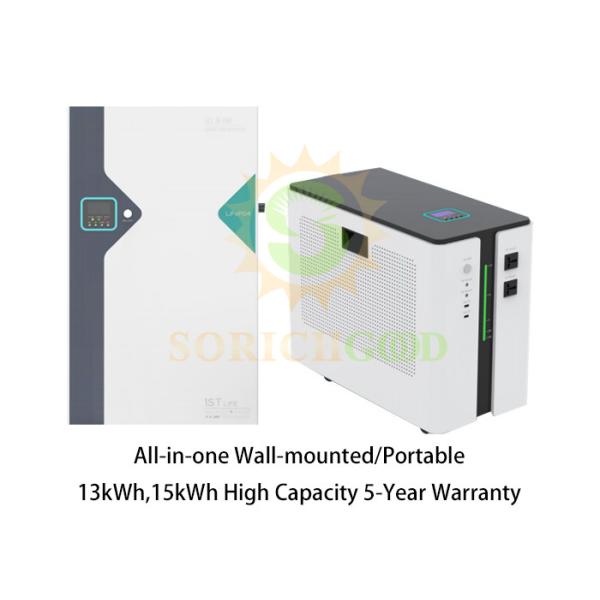

    13kWh 15kWh DB All-in-One Lithium Battery Storage Ideal for Permanent and Temporary Installations



    Product Description

    The DB All-in-One Wall-mounted/Portable Battery Series (13kWh, 15kWh) represents the next generation of energy storage solutions, combining the inverter and battery into a single, compact unit. This design simplifies the installation process, reduces the overall footprint, and provides a seamless integration for both residential and commercial energy systems. Built with advanced LFP (Lithium Iron Phosphate) technology, this series offers high efficiency in energy conversion, minimizing energy loss and ensuring maximum power availability. The dual installation options—wall-mounted or portable—offer flexibility for various use cases, from permanent installations to temporary setups. Additionally, the robust design is tailored for outdoor environments, capable of withstanding a wide range of environmental conditions while maintaining reliable performance.


    Total 2 Model

    Technical specifications
    modeDDYTJBG51100-5kDDYTJKY51100-5k
    Battery
    Cell ChemistryLFP
    Nominal Energy (Wh)5120
    Nominal Capacity(Ah)100
    Nominal Votage (V)51.2
    Working Voltage Range (VDC)44.8~58.4
    Max.Charge/Discharge Current (A)100A
    BMS CommunicationCAN2.0/RS485
    PV Input
    Max.PVInput Power (W)7500
    Max.PV Input Voltage(V)600
    MPPTVoltage Range (V)100~550
    Start-up Voltage (V)125
    Number of MPPTs2
    Number of PV Strings per MPPT1/1
    Max.PVInput Current(A)20
    AC Input and Output (On-grid)
    Nominal Input/Output Apparaent Power (VA)5000
    Nominal Input/OutputVoltage (V)230
    Nominal Grid Frequency(Hz)50/60
    Max.Output Current (A)21.7
    THD<3%
    Power Factor0.8 leading~0.8 lagging
    Switch time(ms)10
    Grid ConnectionSingle Phase

    General Information
    Dimension [H*W*D](mm)500*156*834320*660*499
    Packing Dimension [H*W*D](mm)600*250*900380*720*590
    Weight (kg)8561
    Packing Weight (kg)9063
    Permissible Altitude(m)4000(>2000 derating)
    Dispaly ScreenLCD/LED
    IP RatingIP65
    Working Temperature(℃)-20~60
    Relative Humidity0~95%,no condensation
    Cyce Life6000 cydes
    Warranty5 years
    Installation TypeWall-mountedPortable
    CertificationIEC62619/EN61000-6-1/EN61000-3/RoHS/UN38.3

    Application

    The DB All-in-One Wall-mounted/Portable Battery Series is ideal for customers looking for a streamlined, efficient energy storage solution that is easy to install and versatile in application. The combination of inverter and battery in a single unit makes it perfect for situations where space is limited, such as in urban residences, small businesses, or portable power setups for events. Its adaptability to both permanent and temporary installations offers unmatched flexibility, catering to users who need a reliable power source that can be easily moved or reconfigured as needed. Whether it's for home energy storage, backup power, or portable applications, this series provides a comprehensive solution with the added benefit of being environmentally resilient.


    Shipping Methods

    Supports global air and sea shipping
