Grid-Tied and Off-Grid Functionality with Lithium Battery Storage for Homes

Ask Lasest Price
Brand Name :	GK
Model Number :	GKAIO
Certification :	IEC62109-1/-2 EN61000-6-1/EN61000-6-3
Price :	consult prices online
Payment Terms :	T/T

Add to Cart

Product Details
Company Profile

Grid-Tied and Off-Grid Functionality with Lithium Battery Storage for Homes

Grid-Tied and Off-Grid Functionality with Lithium Battery Storage for Homes

Product Description:

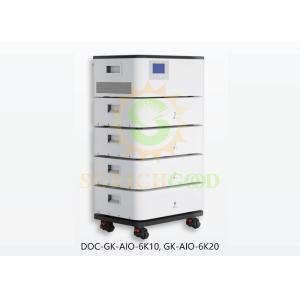

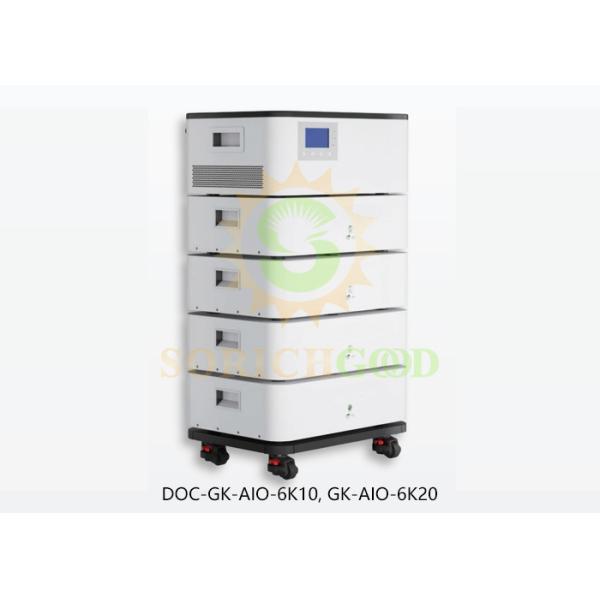

This All In One Residential ESS integrates a high-performance inverter and energy storage system, making it the ideal solution for residential energy needs. Equipped with REPT LFP battery technology, it provides enhanced safety, stability, and longevity. The modular design ensures easy installation, and the plug-and-play functionality enables seamless operation. Its advanced monitoring capabilities, including mobile app control, and diesel generator support make it a versatile and reliable option for residential energy storage.

Battery Parameter
Battery Type LFP
Battery Energy	10.24kWh				20.48kWh
Number of Batteries	2				4
Battery Voltoge				51.2V
Voltoge Range		42V~60V
Max.Charging/Discharging Current		100A
DC input(PV)
Max.Allowable Input lower			8000W
Mgx Input Voltoge			580V
Roted Input Voltoge			350V
Start-up Voltage			120V
MPPT Voltage Ronge			120~520V
Max.Input Current			15A/15A
Max.Short Circuit Current			22.5A/22.5A
Number of MPPT/Max.Number ofPV Strings			2/2
AC Output(Grid)
Rated output power				6000W
Max.Output Power				6.6kW
Max.Output Apparent Power				6.6kVA
RatedOutput Current				27.3A
Max.Output Current				30A
Switching Time				<10ms
Rated Output Voltage/Frequency			LN/PE 220V/230V 50Hz/60Hz
Outout Power Factor			0.8 leading...0.8 logging
Total Curent Harmonic Distortion Rate (on-grid	) <2%
AC Output(Load)
Max.Output Power 6.6kW Max.Output Apparent Power 6.6kVA Max.Output Current 30A
Rated Output Voltage/Frequency L/N/PE 220V/230V 50Hz/60Hz Total Current Harmonic Distortion Rote (off-grid) <3%
AC Output(Charging Pile)
Max.Output Apparent Power 7.4kVA
Max.Output Current 40A
Rated Output Voltoge/Frequency L/N/PE 220V/230V 50Hz/60Hz
AC Input
Max.Output Apparent Power 10kVA
Max.Output Current 50A
Rated Output Voltoge/Frequency L/N/PE 220V/230V50Hz/60Hz
Efficiency
Max.PV Efficiency 97.50%
Standard
Safety Regulations IEC62109-1/-2
Electromagnetic Compatibility EN61000-6-1/EN61000-6-3
Basic Parameter
Dimension(WDH) 595435630mm/23.417.124.8 in					5954351070mm/23.417.142.1 in
Weight 125.5kg/277 Ibs					225.5kg/497 Ibs
Cooling Method air-cooling,wind speed adjustable
Protection Class P20
Ambient Temperature -25℃~+60℃(>45degree
Maximum Altitude 3000m
Communication Mode RS485/WIFI/GPRS (external communication bar)

Application:

Designed for residential settings, this system efficiently manages solar energy, allowing for grid-tied and off-grid functionality. It is perfect for households looking to reduce energy costs, enhance energy independence, and ensure reliable backup power during outages. With the ability to support oversized PV power systems, this solution is adaptable for a wide range of energy needs in the home.

Shipping Methods

Supports global air and sea shipping.
